> 제품소개 > ATM (LOBBY) > Onyx-W

Dimensions without packing: • Height : 19.7"
• Width : 26.8"
• Depth : 10.9"
• Weight with WCDU : 125.9 lbs
Dimensions with packing: • Height : 28.1"
• Width : 31.5"
• Depth : 14.8"
• Weight with WCDU : 135 lbs
Power Requirements: • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Integrated Illuminated Sign: • High Visibility LED Sign
• Attract Customers

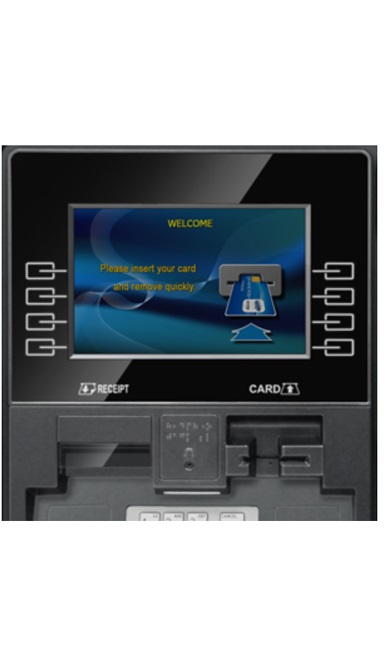

LCD Screen: • 10.1 inch wide TFT LCD Panel
• 1280x800 Resolution
• Customizable Ad Screens
• 8 Lighted-Touch function keys
Printer: • 56mm (2" standard)

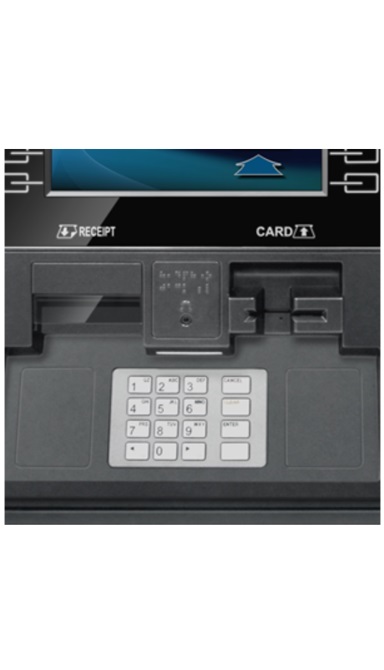

PIN Entry Device: • 16-key alphanumeric keypad
• PCI 3.0 Certified EPP (Encrypting Pin Pad)
• LED Illumination
Communication: • 56Kbps dial-up modem
• TCP/IP Ethernet connection - Onboard SSL
CPU: • Coretex-A9 Dual Core
• DDR3 1Gbytes
• 512MBytes NAND Memory
• Windows CE 7.0
Card Reader: • EMV (DIP Type)
ADA: • Voice Guidance
• Lighted Transaction Guidance
• Accessible Keypad Layout
Security: • Electronic Lock
• A-series Lock
• Cencon Lock

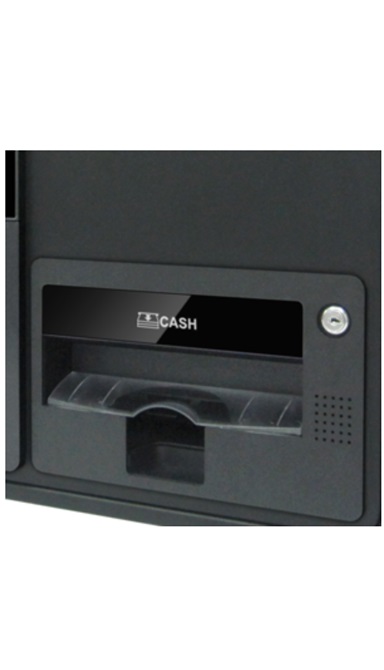

Cash Dispenser: • 1000 Note Removable Cassette (WCDU)
