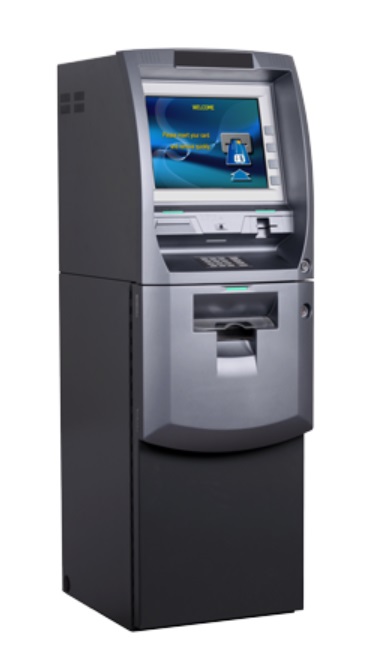

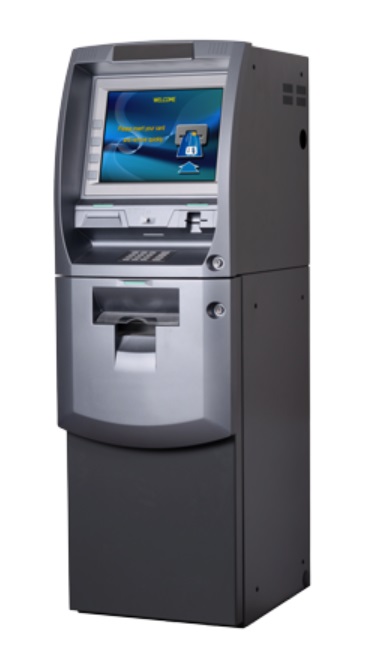

> 제품소개 > ATM (LOBBY) > C6000P

Dimensions without packing: • Height : 55.9"
• Width : 18.1"
• Depth : 24.1"
Dimensions with packing: • Height : 62.6"
• Width : 21.3"
• Depth : 30.3"
• Weight with SCDU : 429 lbs
Power Requirements: • AC 110/220 V ±10%, 50/60 Hz, 145 Watts

High-Brightness Topper: • Optional High-Brightness Topper Sign
• Customizable Graphic Insert
• Optional Video Topper
Monitor: • 15" Color TFT-LCD panel
• LED Back-light
• High-Res 15" touch screen LCD panel (Optional)
• 1024 x 768 XVGA resolution
• 250 cd/m2 Luminance
Printer: • 80mm Thermal Receipt Printer
• 40 Characters per line
• 200 DPI mono-graphic printing
PIN Entry Device: • 16-key alphanumeric keypad
• PCI V3.X Certified
• Triple-DES (TDES) compliant EPP
Cash Dispenser: • Up to 4 x 2000 Notes Removable Cassette
CPU: • Coretex-A9 Dual Core
• DDR3 1Gbytes
• 512MBytes NAND Memory
• Windows CE 7.0
Card Reader: • EMV (Dip type)
ADA: • Voice Guidance
• Lighted Action Indicators
• Accessible Keypad Layout
Security: • UL291 Business Hours Vault
• Electronic lock
• Kaba Mas Cencon Series Lock (optional)
• Level 1 Vault (optional)
Communication: • 56,000 bps dial-up modem
• TCP/IP Ethernet connection - Onboard SSL
• Kaba Mas Cencon Series Lock (optional)
• Level 1 Vault (optional)
