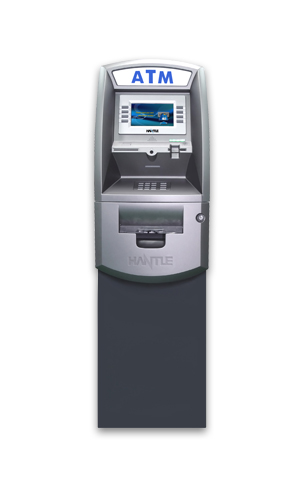

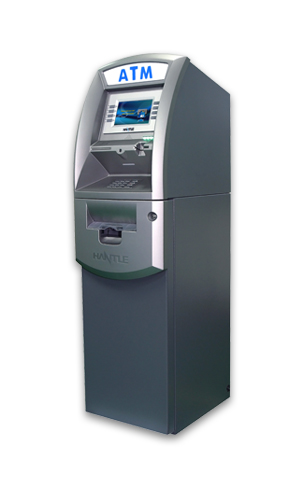

> PRODUCT > ATM (LOBBY) > 1700W

Dimesion and Weight
- Height: 56"
- Width: 16"
- Depth: 22"
- Weight: 206lbs.
Power Requirement
- 110 / 220VAC Manual switch
- Requires LINE, NEUTRAL, and GROUND
Temperature and Humidity
- Storage: 32F - 104F, 10% < RH < 90% non-condensing
- Operating: 40F - 95F, 15% < RH < 85% non-condensing

Main Control Board
- Samsung S3C2440AL-40 RISC 32-bit CPU
- 64MB RAM (not expandable)
- WinCE™ 5.0 Operating System
- 56Kb modem
- Integrated Ethernet (RJ-45)
- Electronic Journal – stores up to 40,000 transactions
Power Supply
- Power switch
- 110 / 220 volts (manual selection)
- 60 / 50Hz
- 175 watts (max)
- Fuse protection
Receipt Printer
- 2 inch thermal printer
- Automatic paper loading and cutting
- Paper out status sensor
Cash Dispensing Unit
- Friction feed mechanism
- Dispense capacity of 800 notes (fixed cassette)
- Dispense capacity of 1000, 1700, 1700x2 (removable cassette)
- Reject bin
- Ultrasonic Double-Detection sensor Cash dispensing unit is mounted on a sliding – panel for easy service
- Automatic Jam-Clearing function reverses jams and diverts to reject bin
LCD Display and Function Keys
- 7 inch TFT LCD panel 800 x 480 resolution WVGA
- Eight function keys for menu selection
- Displays up to 8 customizable graphics screens which rotate on idle, and while processing
Magnetic Card Reader
- Dip type
- Reads ISO tracks 1 and 2
- EMV (optional)
Keypad
- Triple DES compliant Encrypted Pin Pad (EPP)
- PCI Certified (approval number 4-70003) Interac Certified (Canada)
- Tamper resistant design erases all programming - and stored master keys if opened
- 16 keys with integrated Braille symbols
- 0 – 9 for numeric entry
- Left and right arrows for scrolling
- ENTER, CLEAR, CANCEL and BLANK keys
