Dimesion and Weight
- Height: 56.36"
- Width: 15.8"
- Depth: 22.3"
- Weight: 206lbs.
Power Requirement
- 110/220 VAC ±10%, 50/60 Hz, 145 Watts
Temperature and Humidity
- In storage: 32°F - 104°F (0°C ~ 49°C)
- While operating: 45°F - 95°F (5°C ~ 35°C)
Allowable Humidity
- In storage : 10% < RH < 90%, non-condensed
- While operating : 15% < RH < 85%, non-condensed

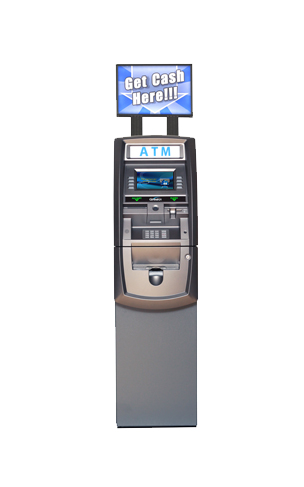

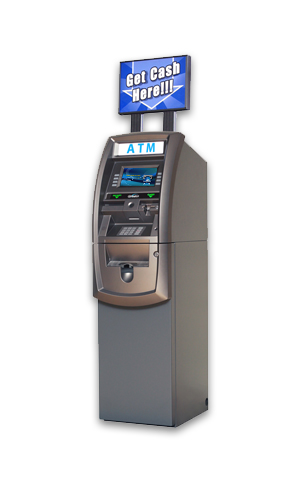

Topper
- Optional LED Topper Sign
- Can accept custom inserts
Integrated Illuminated Sign
- High Visibility LED Sign
- Attract Customers
LCD Screen
- 8 inch diagonal 32-bit color
- Backlit TFT LCD panel
- 800x480 Resolution
- 10.2 inch touch-screen (Optional)
- Customizable Ad Screens
Printer
- 56mm (2" standard)
- 80mm (3" optional)
- Graphics Capable with 3"
PIN Entry Device
- 16-key alphanumeric keypad
- PCI/Interac Certified
- Triple-DES (TDES) compliant
Communication
- Samsung 32-bit CPU
- 64MB RAM / WinCE 5.0
Card Reader
- DIP Type card reader
- EMV Optional
ADA
- Voice Guidance
- Lighted Transaction Guidance
- Accessible Keypad Layout
Security
- UL291 Business Hours Vault
- Dial or Electronic Lock
Cash Dispenser
- 800 Note Fixed Cassette (TCDU)
- 1000 Note Removable Cassette (SCDU)
- 1700 Note Removable Cassette (MCDU)
- 2x1700 Note Removable Cassette (MCDU)
