Dimensions
- Height: 56"
- Width: 17"
- Depth: 23"
- Weight: 260lbs.
Power Requirement
- 110 /220VAC Manual switch
- Requires LINE, NEUTRAL, and GROUND
Temperature and Humidity
- Storage: 32F – 104F, 10% < RH < 90% non-condensing
- Operating: 40F – 95F, 15% < RH < 85% non-condensing

Main Control Board
- Samsung S3C2440AL-40 RISC 32-bit CPU
- 64MB RAM (not expandable)
- WinCE™ 5.0 Operating System
- 56Kb modem
- Integrated Ethernet (RJ-45)
- Electronic Journal – stores up to 40,000 transactions
Power Supply
- Power switch
- 110 / 220 volts (manual selection)
- 60 / 50Hz
- 175 watts (max)
- Fuse protection
Receipt Printer
- 3” inch (80mm) thermal printer
- Automatic paper loading and cutting
- Paper out status sensor 200 DPI Monographic Printing (576p x 2229)
Cash Dispensing Unit
- Upgradeable from 1 to 4 cassettes
- Friction feed mechanism
- Dispense capacity of 800 notes (fixed cassette) Dispense capacity of 1000, 1700, 1700x2/x4 (removable cassette)
- Reject bin
- Ultrasonic Double-Detection sensor
- Cash dispensing unit is mounted on a sliding panel for easy service
- Automatic Jam-Clearing function reverses jams and diverts to reject bin
LCD Display and Function Keys
- 10.4 inch TFT LCD panel 800 x 600 resolution SVGA
- 200 cd/m2 Luminance
- Eight function keys for menu selection
- Displays up to 8 customizable center graphics screens and banner ads which rotate on idle, and while processing
Magnetic Card Reader
- Dip type
- Reads ISO tracks 1 and 2
- EMV (optional)

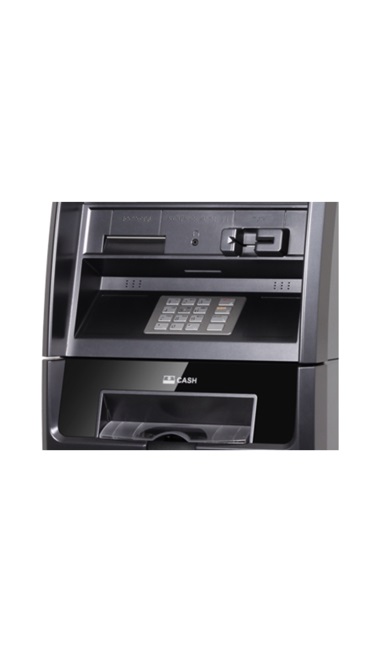

Keypad
- Triple DES compliant Encrypted Pin Pad (EPP)
- PCI Certified (approval number 4-70003) / Interac Certified (Canada)
- 16 keys with integrated Braille symbols
- 0 – 9 for numeric entry
