> PRODUCT > KIOSK > G6000/GK5000

Dimesion and Weight: - Height: 56"
- Width: 18.1"
- Depth: 24.1"
- ATM Weight = 175 lbs. (cash dispenser not included)
- Sidecar Weight = 150 lbs. (no devices)
Power Requirement: - 110/220 VAC ±10%, 50/60 Hz, 145 Watts
Temperature Requirements: - In storage: 32°F - 104°F (0°C ~ 49°C)
- While operating: 45°F - 95°F (5°C ~ 35°C)
Allowable Humidity: - In storage : 10% < RH < 90%, non-condensed
- While operating : 15% < RH < 85%, non-condensed

High-Brightness Topper: - Optional High-Brightness Topper Sign
- Customizable Graphic Insert
- Optional Video Topper
Touch-Screen LCD Display: - High-Res 15” touch screen LCD panel
- 1024 x 768 XVGA resolution
- 250 cd/m2 Luminance
Printer: - 80mm Thermal Receipt Printer
- 40 Characters per line
- 200 DPI mono-graphic printing
PIN Entry Device: - 16-key alphanumeric keypad
- VISA/PCI and Interac Certified
- Triple-DES (TDES) compliant EPP
Cash Dispenser: - Friction Feed – Spray type
- Single Cassette upgradable to four
- 1700-6800 note capacity
- Auto-recovery for bill jams
- Front loading cassettes
Main PC Platform: - Intel ATOM® N270 Processor
- Windows 7 Professional
- Solid-State Hard Disk Drive
- 56K Dial Up Modem
- TCP/IP Ethernet
Magnetic Card Reader: - DIP Type card reader
- EMV Optional

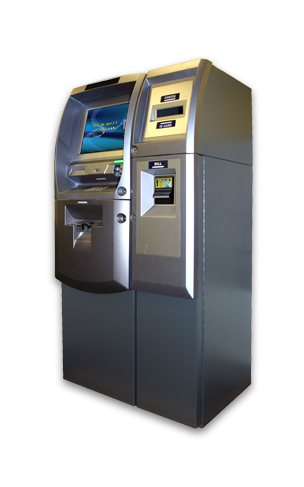

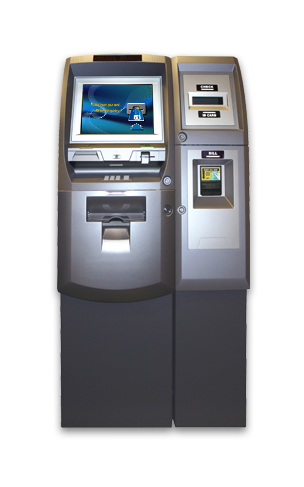

Sidecar Chassis: - Peripheral Options
• Bill Acceptor 500 and 1000 note cassette
• Check Scanner
• Digital Security Camera
• Lighted Action Indicator LED
ADA: - Voice Guidance
- Lighted Action Indicators
- Accessible Keypad Layout
Security: - UL291 Business Hours Vault
- LaGard electronic lock
- Kaba Mas Cencon Series Lock (optional)
- Level 1 Vault (optional)
