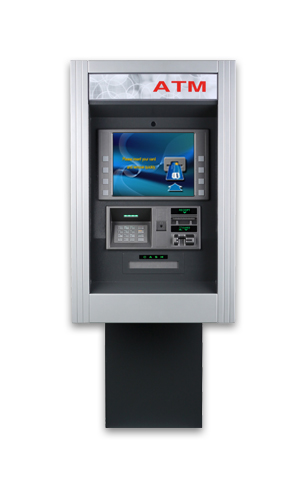

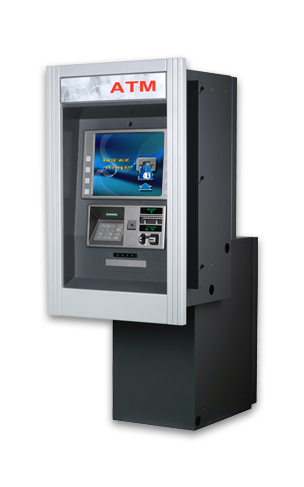

> PRODUCT > ATM (TTW) > GT5000

Dimesion and Weight: - Height: 56.7"
- Width: 24.1"
- Depth: 33.9"
- Weight: 570lbs.
Power Requirement: - 110/220 VAC ±10%, 50/60 Hz, 145 Watts
Operating Environment: - Temperature range : 40°F - 95°F
- Relative humidity : Non-condensing = 15% - 85%

Integrated Illuminated Topper Sign: - High Visibility LED Sign
- Attract Customers
LCD Screen: - 15 inch color TFT-LCD Panel
- High bright LED backlight (800 cd/m2)
- 1024x768 (XGA) Resolution
Printer: - 80mm / 3" Receipt Printer
- 200 DPI monographic printing
PIN Entry Device: - 16-key alpha numeric keypad
- PCI/Interac Certified
- Triple-DES (TDES) EPP
Rear Service Panel: - 7 inch color touch screen
- Backlit TFT LCD Panel
- 800x480 Resolution
Communication: - 56Kb Internal Model
- TCP/IP Ethernet - SSL
CPU: - Cortex-A8 32bit CDP
- DDR2 256MB RAM / WinCE 6.0
Card Reader: - DIP Style Magnetic Card Reader
- EMV - Optional
ADA: - Voice Guidance
- Lighted Transaction Guidance
- Accessible Keypad Layout
Security: - UL291 Business Hours Vault
- Electronic Lock or Cencon (optional)
Cash Dispenser: - 1 x 1700 Note Cassette
- 2 x 1700 Note Multi-Cassette
- 3 x 1700 Note Multi-Cassette
- Presenter module
