Dimesion and Weight: - Height: 56.36"
- Width: 15.75"
- Depth: 22.29"
- Weight: 206lbs.
Power Requirement: - 110/220 VAC ±10%, 50/60 Hz, 145 Watts
Temperature and Humidity: - In storage: 32°F - 104°F (0°C ~ 49°C)
- While operating: 45°F - 95°F (5°C ~ 35°C)
Allowable Humidity: - In storage : 10% < RH < 90%, non-condensed
- While operating : 15% < RH < 85%, non-condensed

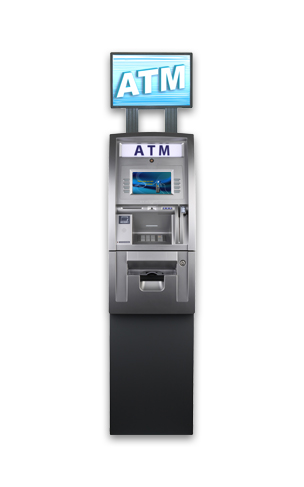

High-Brightness Topper: - Optional Topper Sign
- Can accept custom inserts
Integrated Illuminated Sign: - High Visibility LED Sign
- Attract Customers
LCD Screen: - 8 inch diagonal 32-bit color
- Backlit TFT LCD panel
- 800 x 480 WVGA
- 8 Customizable Ad Screens
Printer: - 56mm Thermal Receipt Printer
PIN Entry Device: - 16-key alphanumeric keypad
- VISA/PCI and Interac Certified
- Triple-DES (TDES) compliant EPP
Cash Dispenser: - 800 Note Fixed Cassette (TCDU)
- 1000 Note Removable Cassette (SCDU)
- 1700 Note Removable Cassette (MCDU)
- 2x1700 Note Multi-Cassette (MCDU)
- Optional Support for
• De La Rue SDD
• Puloon LCDM1000
CPU: - Samsung S3C2440AL-40 RISC 32-bit CPU
- 64MB RAM / WinCE™ 5.0 OS
- Electronic Journal > 40,000 transactions
Communication: - 56,000 bps dial-up modem
- TCPIP Ethernet connection – Onboard SSL
ADA: - Voice Guidance
- Lighted Action Indicators
- Accessible Keypad Layout
Card Reader: - Dual-Head Swipe Card Reader
- EMV – DIP Optional
Security: - UL291 Business Hours Vault
- Door Seam Reinforcement
- Dial or Electronic Lock
